Fine Pitch LED Displays
Fine pitch LED displays are built for audiences standing close to the screen, where pixel structure would otherwise be visible. They are used in boardrooms, control rooms, broadcast settings, corporate lobbies and retail feature walls where text and detailed content have to read cleanly at short range.
Typical specification ranges.
Fine pitch configurations start at 1.25 mm, where a single square metre carries 640,000 pixels.
| Parameter | Range |
|---|---|
| Pixel pitch | 1.25 – 1.923 mm |
| Pixel density | 270,421 – 640,000 dots/m² |
| Brightness | 700 – 1,000 cd/m² |
| Refresh rate | 3,840 Hz or higher |
| Contrast ratio | 3,000:1 with black LED and black mask |
| Power draw | 400 W/m² average, 800 W/m² peak |
| Installed depth | From 8 cm |
Figures describe the module and cabinet platform. Final values are confirmed during engineering review.
What fine pitch actually means
Pixel pitch is the distance between the centres of two adjacent pixels. A smaller pitch places more pixels into the same area, which raises resolution and makes the image cleaner at close viewing distances.
Fine pitch is a relative term, not a fixed threshold. What counts as fine depends on how near viewers stand and how much detail the content carries - a spreadsheet read from three metres is far more demanding than a video loop seen from fifteen.
Reducing pitch raises pixel density and cost at the same time, so the useful question is not the smallest pitch available but the pitch that matches the closest realistic viewing point.
Choosing pitch from viewing distance
Start with the nearest distance a viewer will realistically stand, not the average. A screen specified for the average distance looks coarse to anyone who walks up to it.
Then consider content. Large type, motion graphics and video tolerate a coarser pitch; dense text, data tables, maps and fine product imagery do not.
Wall size and cabinet size set the resolution you can actually reach. A physically small wall may not have enough cabinets to reach a target resolution at a very fine pitch, which is worth checking before the pitch is fixed.
Where fine pitch displays are used

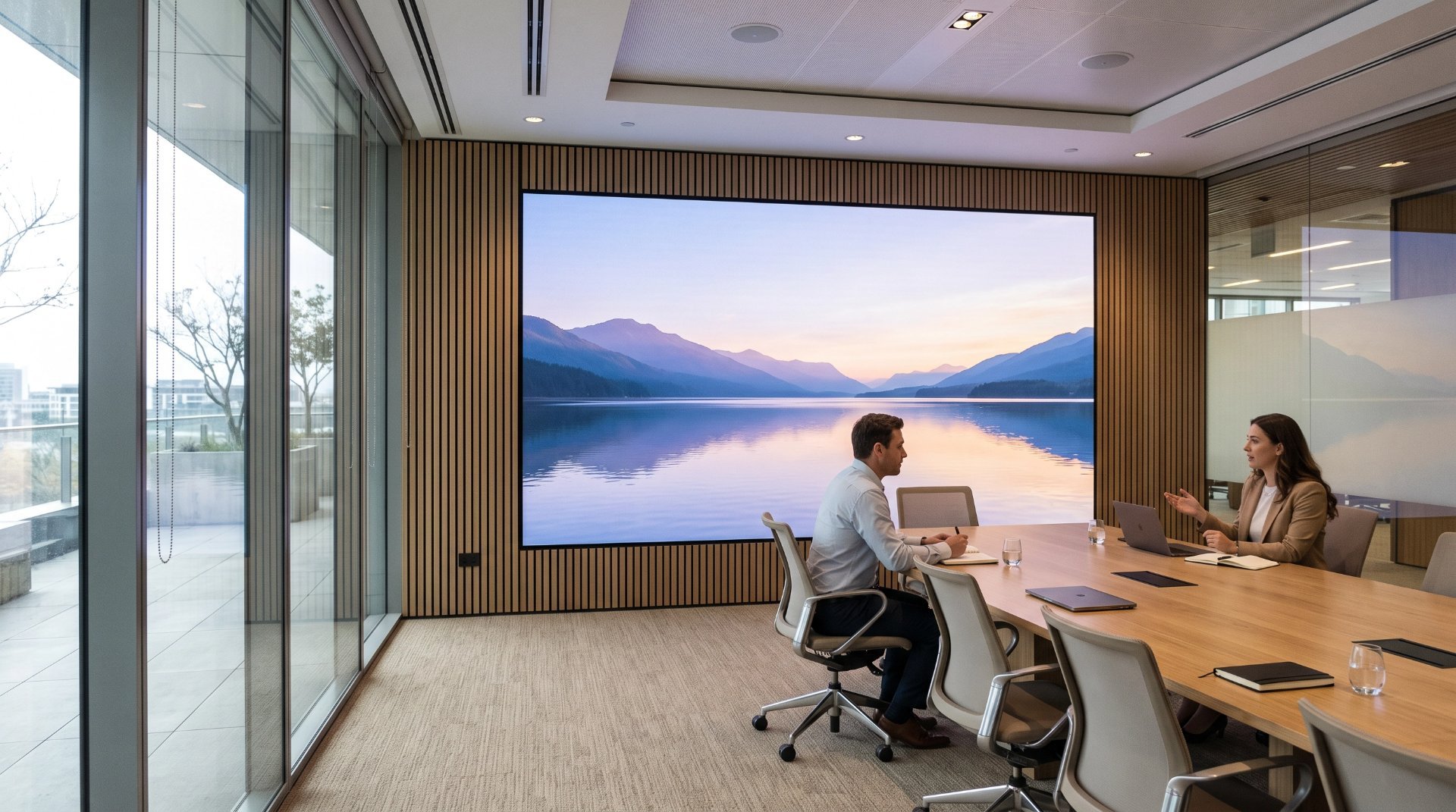

Boardrooms and meeting rooms, where presentation text and video calls are read from a few metres.
Control and monitoring rooms, where dense data has to stay legible over long operating hours.
Corporate lobbies and reception walls that are viewed up close as well as from across the room.
Retail feature walls, showrooms and museum or exhibition content where visitors approach the surface directly.
Broadcast and studio environments, where the screen appears on camera and uniformity matters.
What to specify beyond pitch
Brightness and contrast should suit the room's ambient light; a very bright wall in a dim boardroom is uncomfortable and washes out content.
Colour and brightness uniformity across cabinets matters more on a close-view wall than on a large exterior screen, because the viewer can compare neighbouring panels directly.
Refresh rate and grey-scale behaviour affect how the wall looks on camera and at low brightness levels.
Service access is frequently overlooked. In a finished interior, rear access may not exist, which makes front-serviceable cabinets the safer specification.
Heat and fan noise from power and control hardware should be planned for, particularly in quiet meeting spaces.
Supply and commissioning
Each system is configured for its installation. Pitch, cabinet format, brightness, control hardware and service access are specified against the site before supply.
Calibration after installation is what makes a fine pitch wall look consistent; agree when and how it is carried out, including after any module replacement.
A small holding of spare modules from the same production batch reduces the visible difference when a module is replaced later.
Fine Pitch LED Displays: common questions
What pixel pitch counts as fine pitch?
There is no single threshold. A pitch that looks fine on a lobby wall viewed from six metres can look coarse in a boardroom viewed from two. Decide from the closest realistic viewing distance and the detail in the content, then check it against budget and the resolution the wall size can actually deliver.
Is a finer pitch always better?
Not necessarily. Finer pitch increases pixel density and cost, and may raise power and heat. Once the image stops showing visible pixel structure at the real viewing distance, spending more on pitch brings little visible benefit and may be better spent on uniformity, calibration or service access.
Can a fine pitch display be serviced from the front?
Many cabinets are designed for front service, which matters in finished interiors where rear access is not available. The service method should be decided before installation, because it affects cabinet choice, wall build-up and how a failed module is reached later.
Do fine pitch displays need calibration?
Yes, and it is worth specifying explicitly. Uniformity is the first thing a viewer notices on a close-view wall. Calibration at commissioning, and again after module replacement, keeps brightness and colour consistent across cabinets.
